OUTDOOR LIGHTING
STREET LAMPS AND FLOODLIGHTS
Durability and reliability at very high performance are the defining features of street luminaires and floodlights manufactured by TheusLED. To complement the range, we also offer the Italian design and quality of FAEL LUCE luminaires.
From design to installation of outdoor lighting
Comprehensive outdoor lighting solutions.
In addition to PROMETHEUS industrial luminaires, TheusLED also manufactures KALIOPE street lamps and EOS floodlights with top performance.
We provide comprehensive investment support, including an audit of the current lighting condition, the design of a new lighting system, the selection of luminaires and the control system, as well as delivery of components and their installation.

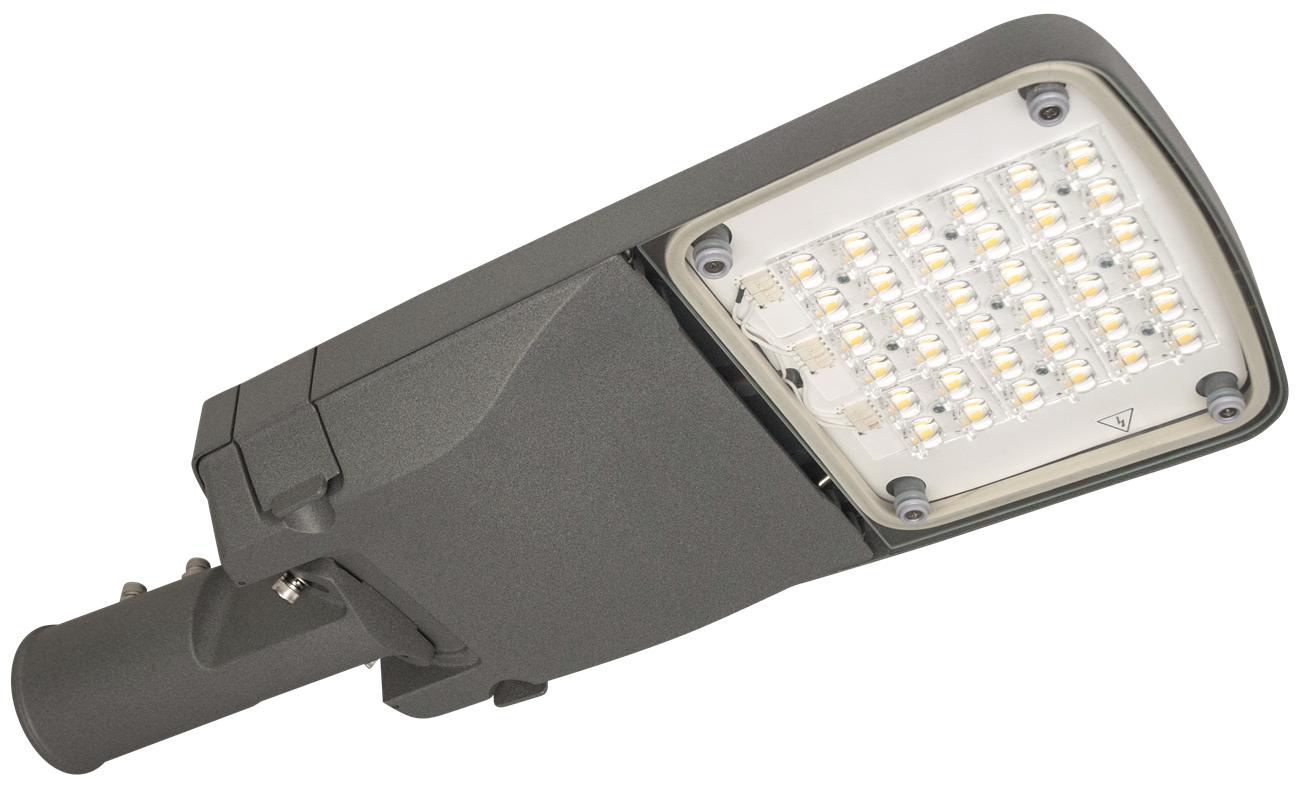

KALIOPE street luminaires
The luminaires are characterized by very high luminous efficacy, exceeding 175 lm/W, while maintaining low energy consumption.
Durability and safety
- Manufactured in Poland
- Design ensuring long service life
- Weather resistance
- Pressure equalization valve
- Surge protection
- 5-year warranty with extension option
Standard equipment
- power supply with surge protection 6 kV (L-N) / 10 kV (L/N-PE)
- knife connector
Easy installation and maintenance
- Vertical and horizontal mounting
- Wide range of luminaire tilt angle adjustment
- Tool-free access to the power supply compartment
- Safe knife power connector
- Low operating costs
Additional options
- 10 kV surge protection
- NTC thermal protection (temperature sensor on the LED module)
- twilight sensor
- Zhaga 18 connector for communication and sensors
Proximo LED industrial luminaire
The TheusLED outdoor lighting offer is largely based on luminaires from the renowned Italian company FAEL LUCE, a global leader in supplying innovative and sustainable lighting systems. The extensive range includes lighting systems with many control options for large areas, sports facilities, road lighting, and industrial lighting.
Where lighting is needed for access roads, parking lots, or shelters, we offer our customers industrial Proximo City street luminaires. These industrial luminaires are an example of interesting, modern design; their highly durable bodies and covers are made of high-pressure die-cast aluminum and can be installed in top or side entry versions. LED diodes from leading manufacturers (Philips, Cree), ensuring high luminous efficacy, are mounted to an aluminum core via a dielectric ceramic printed circuit board, which provides excellent heat dissipation. At the customer’s request, FAEL can provide a system with a programmable controller in order to reduce electricity consumption while ensuring the lighting level of the facilities in accordance with the standard. In addition, power can be reduced during night hours when traffic is limited, generating further energy savings.
An elegant top cover, finished with transverse vents, ensures effective and optimal heat dissipation.
SAFEWAY®OPTIC
Stainless steel closing clip
Device for top-of-pole and bracket mounting
4 mm highly transparent tempered glass
Electronic power supply designed for outdoor use
The compact housing enables constant heat dissipation
Rotationally symmetrical optics.
Metallized polycarbonate reflectors
All versions are protected against surges in order to protect components and LED diodes up to 10 kV
Electrical and optical components easily replaceable
Mach 5 LED floodlight
The most important feature of programmable controllers is the CLO dimming function (constant light output). For monitoring and remote control of devices, the DALI system is recommended, which is the number one technology for lighting systems. Not only for classic lamps, but also for modern LED devices, the use of the system can bring huge energy savings, up to 70%.
Industrial street luminaires can also be controlled in a PLC system via the power line. This is a particularly convenient solution because monitoring and controlling industrial lamps can take place without additional cables.
For the direct lighting of the areas surrounding buildings as well as entrances or gates, special MACH-type floodlights have been designed. They differ in power, size, and the type of optics used. Particularly useful in some applications are the so-called asymmetric luminaires, which, thanks to special lens systems, direct the luminous flux toward surfaces that require additional lighting.
EOS floodlights
Outdoor floodlights with high luminous flux.
Used as energy-saving supplementary lighting for yards, parking lots, sports facilities, and building facades..
EOS floodlights are offered in three sizes and power ratings from 40 W to 480 W, specially selected for the application and mounting height. Different optical systems are available – symmetrical and asymmetrical.
Versions with control options enable cooperation with LMS lighting management systems
Structural durability
- Manufactured in Poland
- Design enabling effective heat dissipation and ensuring long service life
- Weather resistance
- High IK08 rating
- Pressure equalization valve
- Surge protection
- 5-year warranty with extension option
Easy installation and maintenance
- Wide range of floodlight tilt angle adjustment
- Low operating costs
